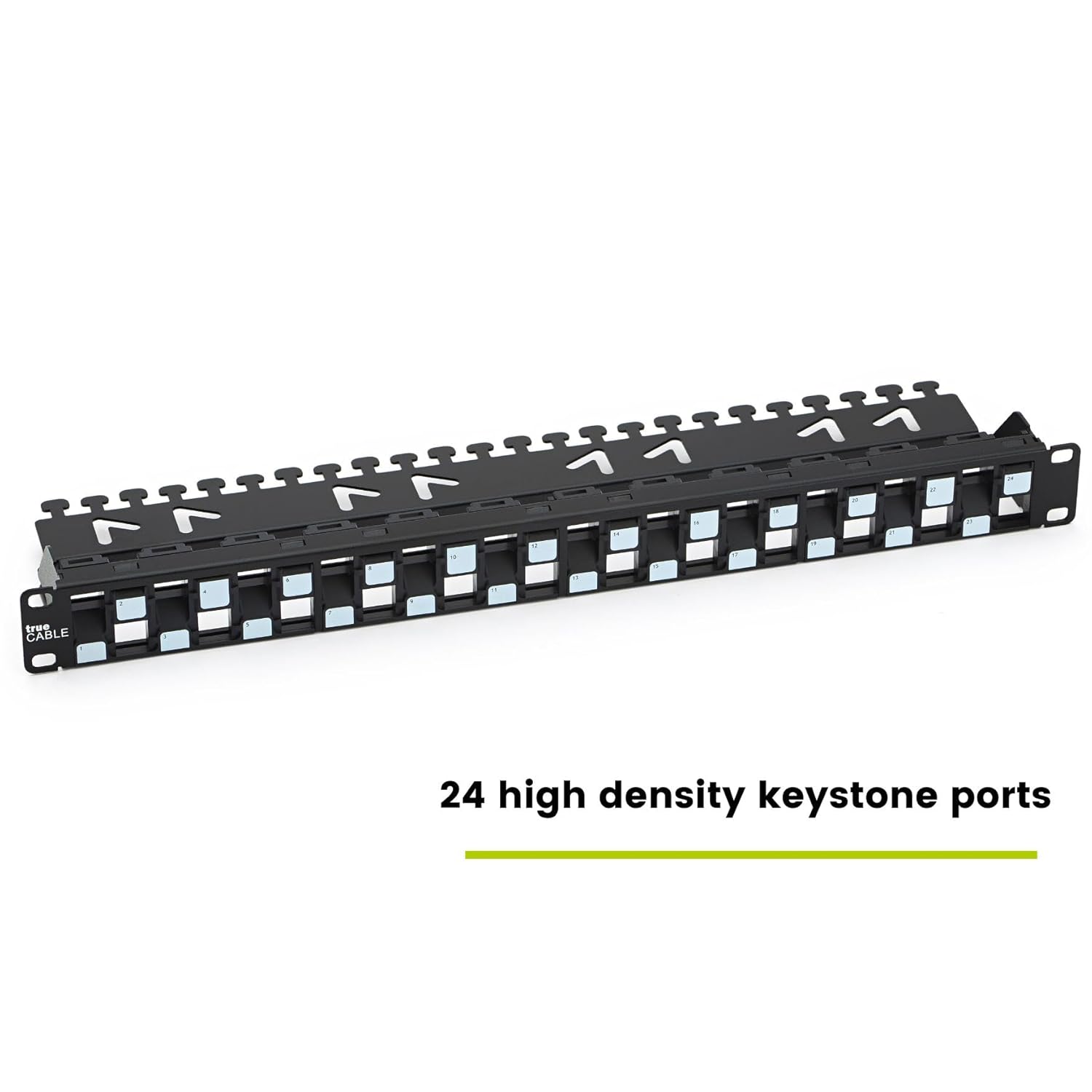

trueCABLE 3-D Staggered 24 Port 19” Toolless Modular Patch Panel, Unshielded, Blank, 1U Rack Mount, with Cable Management Bar, High Density, Black
4.0 (70 items)
Limited Time Sale$35.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216068531 | Release Date | 2026/04/19 | List Price | $24.00 | Model Number | 216068531 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- COMPONENT RATED FOR 10G NETWORKS. Unique 3-D staggered design offsets unshielded keystone jacks in a three dimensional pattern to mitigate alien crosstalk (ANEXT) at the patch panel. Designed specifically to achieve ISO/IEC-11801 and ANSI/TIA 568.2-D Cat6A Component Rated performance when combined with trueCABLE Cat6A Component Rated unshielded keystone jacks.
- VERSATILE. Designed for Cat6A unshielded keystone jacks and U/UTP (unshielded) Ethernet cable. Fully backwards compatible with Cat5e and Cat6. Accepts tool-less and 110 punch down style jacks. The unique cable management bar accepts hook and loop straps for bundling cables or nylon ties. Not recommended for shielded Ethernet cable.
- COMPATIBLE. Tested and certified with trueCABLE tool-less, punch down keystone jacks, and couplers. Works with industry standard snap-in HD Ethernet keystone jacks and couplers. Designed specifically for Ethernet communications cable and hardware. This panel will accept BNC, RCA, HDMI, USB, fiber optic, and snap-in Coaxial couplers, however using the recessed ports (12 out of the 24) may result in oversized cabling/connectors to not physically fit. Please confirm compatibility.
- QUALITY GUARANTEED. Meets EIA-310-E, FCC part 68-F & IEC 60603-7. RoHS Compliant & UL Listed. Frame is ABS UL94V-0 rated.
- ✓ FIELD TESTED, CUSTOMER APPROVED. Individually numbered ports with spacing provided for permanent labeling or temporary write-on port identification. Integrated cable manager and panel are SPCC 1.6t black powder coated cold rolled steel. Unit measures 19” wide by 1.75” high. A minimum rack depth of 8” is recommended for proper clearance. Supplied with 24 nylon ties. Backed by our FOREVER WARRANTY.
| UPC | 656485099192 |
|---|---|
| Color | Black |
| Model | UTP24P1U_BLK |
| Frequency | 500 MHz |
| Brand Name | TRUE CABLE |
| Cable Type | Ethernet |
| Item Shape | Round |
| Item Width | 4.75 Inches |
| Model Name | UTP24P1U_BLK |
| Unit Count | 1.0 Count |
| Item Weight | 1.2 Pounds |
| Manufacturer | trueCABLE |
| Connector Type | RJ45 |
| Number of Pins | 8 |
| Maximum Voltage | 5 Volts |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Specification Met | EIA, FCC, IEC, RoHS, UL |
| Compatible Devices | any HD or standard-sized Ethernet Category cable, keystone, or coupler except as noted above |
| Data Transfer Rate | 10 Gigabits Per Second |
| Indoor Outdoor Usage | Indoor |
| Warranty Description | Forever Warranty |
| Compatible Phone Models | No Compatible Phone Models |
| Ethernet Cable Category | Cat 6a |
| Recommended Uses For Product | Data Center Structured Cabling, Server Room Networking, High-Speed Data Transfer |
| Other Special Features of the Product | Component Rated |
